HDS^®, semi-scissor platform lifts for commercial vehicles, knuckle lift

Better access thanks to the innovative Y-tec semi-scissor technology

The Finkbeiner lift HDS-Tandem can be used also for heavy tractor-trailers and road train trucks / long combination vehicles LCV — The Finkbeiner lift HDS-Tandem can be used also for heavy tractor trailers and road train trucks / long combination vehicles

The scissor platform lift HDS is suitable for all types of heavy duty vehicles, from small forklift trucks to complete trailer trucks or special vehicles. For long vehicles two lifts can be combined to a tandem lift. Each lift can then also be used as a separate single lift. This flexibility opens up various applications. There are special versions for washing halls or outdoor.

HDS, semi-scissor platform lifts, knuckle lift

HDS25xxxxxF02

25 t, semi-scissors,
2 platforms

HDS35xxxxxF02

35 t, semi-scissors,
2 platforms

HDS50xxxxxF02

2 x 25 t, semi scissors,
4 platforms

HDS70xxxxxF02

2 x 35 t, semi scissors,
4 platforms

Your system benefits

Versatile use

Depending on the use and the building situation the platform lift HDS can be installed as floor or recessed version. The single lift is available with platform lengths from 6.5 m up to 14.5 m.

Finkbeiner HDS; the flush-mounted platforms can be passed over easily by a vehicle

Heavy duty lift Finkbeiner HDS, 25 t, electro-hydraulic, floor version

Recessed version of HDS25 — HDS25 - recessed version strip foundation

Finkbeiner platform lift HDS, length of runways 13 m, for articulated buses, capacity 25 tons — Finkbeiner platform lift HDS for articulated buses, length of runways 13 m

Finkbeiner lift HDS-Tandem; common or individual operation of lift 1 and lift 2, capacity total 50 tons

Washbay version of the scissor lift Finkbeiner HDS, fully galvanized

Free access to the vehicle

Construction without base frame, without cross connections, free access from all sides.

Finkbeiner platform lift HDS for ergonomic working underneath the vehicle

Free access from the side, for easy removal of wheels by means of a wheel carriage RW5.16

Scissor platform lift Finkbeiner HDS, ergonomic working by best access to the vehicle and optimum lighting conditions

Operational safety

Double load safety

Double locking of load; hydraulic and mechanical at any lifting height.

Accurate and smooth height synchronization without any increments.

Finkbeiner Y-tec semi scissor design

Superior platform profile

Platform profile with double Z profile, torsion-resistant, totally flat and straight.

HDS platform profile with integrated lamps and 230V socket

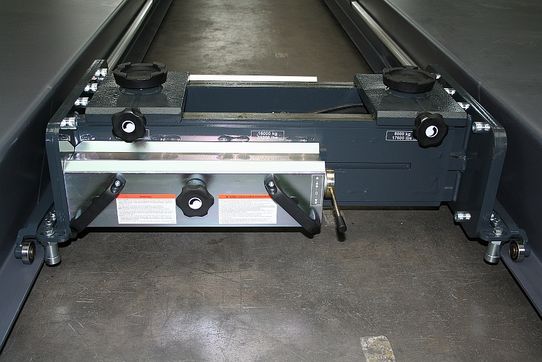

Pneumatic jacking beam 16 t, movable between the platforms of the HDS lift

Y-tec half scissor design with vertical stroke

Y-tec Finkbeiner semi scissor design; the scissors are integrated at the external ends of the platforms

Finkbeiner Y-tec scissor design for vertical lifting and lowering
