Mobile lift with wheel support platforms - FHB3500-DC01 + FA-TORO
FHB3500-DC01 + FA-TORO
article no.: FHB3500-DC01 + FHB3500-Z-FATORO
|
Product variants

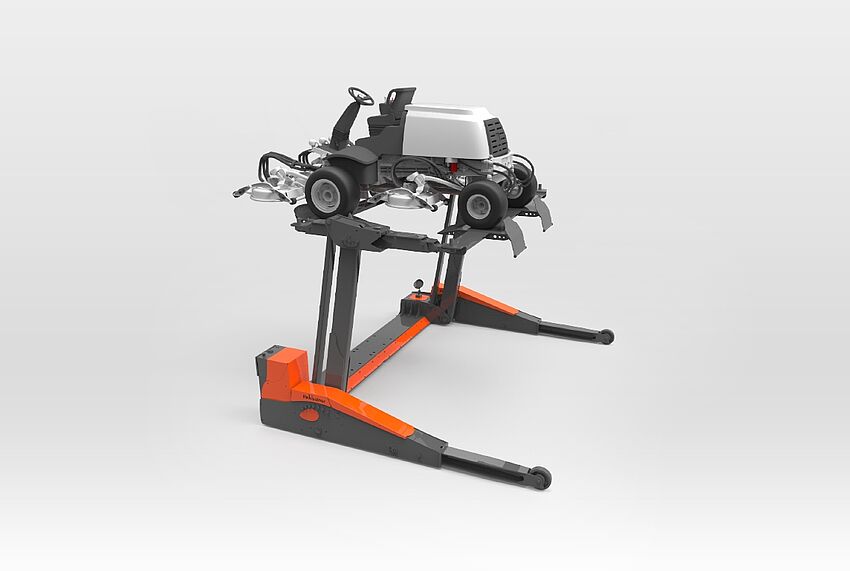

Mobile lift FHB3500-DC01 with accessory FA-TORO:
Portable lift, capacity 2750 kg, battery drive, electro-hydraulic, 4 adjustable wheel support plates, symmetric swivel arms, drive-in width 2300 mm, for mowing vehicles (3-/4-wheeled), golf buggies, fairway mowers, small utility tractors, municipal vehicles.
Productdetails
your system benefits
Free workshop area
Your workshop area stays free for most versatile use. A fixed installation is not required. Plug and play!
Mobile car lift FHB, easy to move by one person
The free-standing lift FHB requires no fixing on the floor
Versatile use in the workshop
The portable lift FHB can be used for various types of vehicles. Cars, SUV and vans are lifted by means of standard swivel arms or optional detachable platforms. Special vehicles such as mowers, golf-carts or small tractors by means of 4 adjustable drive-on platforms.
Lifting also of compact cars such as SMART Fortwo, with free door access
Van MAN TGE raised to half lift stroke
Movable lift FHB3500, can also be used for trailers up to 3.5 tons
Portable FHB3000 car lift with drive-on ramps FA3 as an accessory, ideal for classic cars such as Citroen Traction Avant
Free access to the vehicle
FHB car lift models ensure optimum free access to the underside of the vehicle and free door access at any lifting height.
Free access to the underside of the vehicle
Car doors can be opened freely
Safe support of the vehicle
The car is driven into the U-shape of the lift until the front wheels touch the crossbeam. Then the 4 telescopic swivel arms are positioned underneath the vehicle from the outside to adjust the lifting pads to the car's pick-up points.
Finkbeiner FHB3000, mobile car lift, car drives into the lift frame up to the crossbeam
The swivel arms are positioned at the vehicle's pick-up points from the outside
technical specifications
specifications
| article no. | FHB3500-DC01 + FHB3500-Z-FATORO | |
| lifting unit | quantity of columns | 2 |
| load support | load support | wheel support platforms |
| capacity | 2.75 t | |
| length of swivel arm at front, minimum (mm) | 560 mm | |
| length of swivel arm at front, maximum (mm) | 1300 mm | |
| length of swivel arm at rear, minimum (mm) | 560 mm | |
| length of swivel arm at rear, maximum (mm) | 1300 mm | |
| distance between supports, maximum | 2300 mm | |
| quantity of platforms | 4 | |
| dimensions of wheel support platforms | 400 x 350 mm | |
| length of platforms (mm) | 400 mm | |
| width of platforms (mm) | 350 mm | |
| height of platforms (mm) | 100 mm | |
| distance between platforms | 1600 mm | |
| platform surface | bulb plate | |
| height | lifting height | 1910 mm |
| drive | mode of drive | electro-hydraulic |
| motor | DC voltage | |
| motor power (kW) | 2.2 kW | |
| power supply | type of power supply | battery-powered |
| electrical connection | 230V/1Ph+N+PE/50Hz | |
| type of battery | deep cycle, maintenance-free | |
| battery capacity | 80 Ah | |
| fuse (Amps) | 16 A | |
| length of charging cable | 7 m | |
| charging voltage | 24 V | |
| operation | mode of operation | 1 central control unit |
| control | electric | |
| regularisation | synchronisation | master-slave cylinder system |
| travelling device | travelling device | 2 front wheels, 1 detachable wheel handle at rear |
| load securing | load securing | hydraulic and mechanical |
| dimensions | drive-in width | 2300 mm |
| weight | 1350 kg | |
| protection class | IP54 | |
| surface treatment | type of surface treatment | powder coating |
| colour | orange RAL2004 / grey RAL7015 |
