Mobile 2-post lift - FHB3500-DC01
FHB3500-DC01
article no.: FHB3500-DC01 | Technical data sheet: Download
Product variants

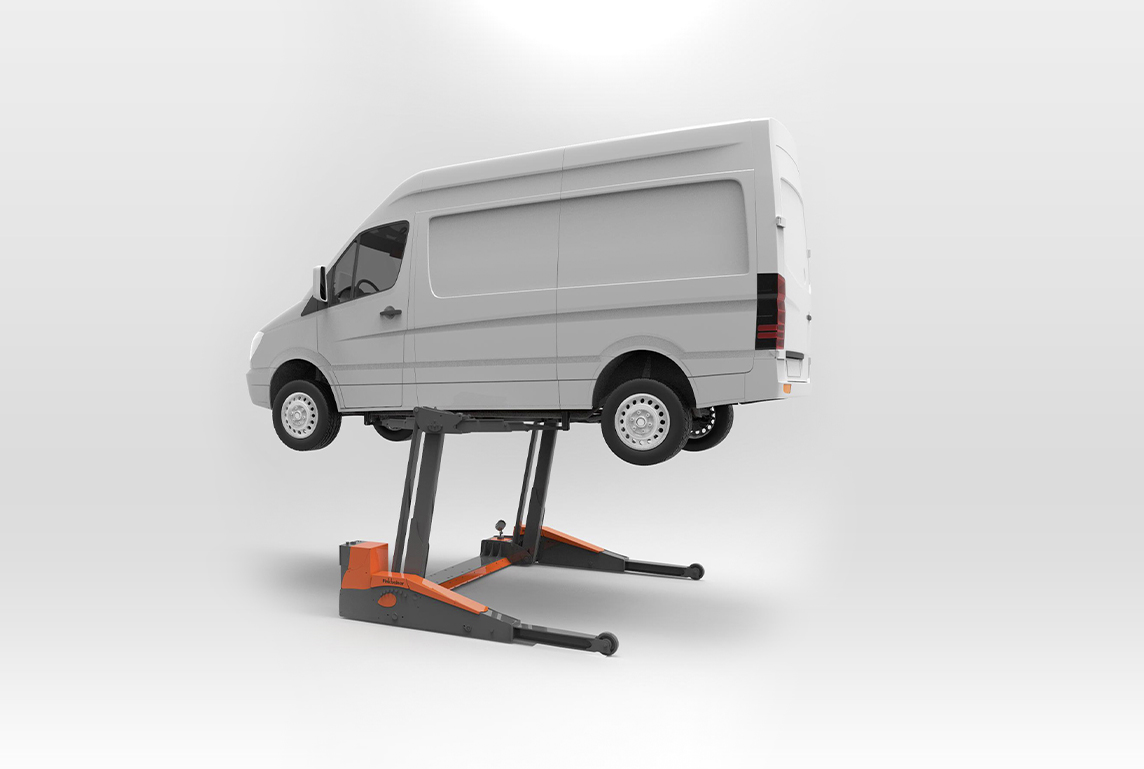

Mobile lift, capacity 3500 kg, battery driven, lifting height 194 cm, symmetric swivel arms, drive-in width 2300 mm, electro-hydraulic drive.
Please adhere to the lifting points prescribed by the vehicle manufacturer and check the suitable load supports, the dimensions and the swivelling range of the swivel arms.
Productdetails
product images
practice images
videos
CiAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgPGRpdiBjbGFzcz0iZi1jYXJvdXNlbCIgZGF0YS1wcm9kdWN0LWRldGFpbC1jYXJvdXNlbD4KICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgCiAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICA8ZGl2CiAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgIGNsYXNzPSJmLWNhcm91c2VsX19zbGlkZSB2aWRlb3MtY29udGFpbmVyIgogICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICBkYXRhLWZhbmN5Ym94PSJnYWxsZXJ5LWFwcGxpY2F0aW9uLWltYWdlcyIKICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgZGF0YS1zcmM9Imh0dHBzOi8vd3d3LnlvdXR1YmUtbm9jb29raWUuY29tL2VtYmVkL29jTVhTRjMyTlBFP3JlbD0wJnNob3dpbmZvPTAmYXV0b3BsYXk9MSIKICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgID4KICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICA8ZGl2IGNsYXNzPSJ5b3V0dWJlLXdyYXBwZXIgaW1hZ2Utd3JhcHBlciIgZGF0YS1lbWJlZD0iIj4KICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgPGltZyBjbGFzcz0iaW1nLWZsdWlkIiBzcmM9Imh0dHBzOi8vaW1nLnlvdXR1YmUuY29tL3ZpL29jTVhTRjMyTlBFL2RlZmF1bHQuanBnIiB3aWR0aD0iMTg1IiBsb2FkaW5nPSJsYXp5IiAvPgogICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICA8ZGl2IGNsYXNzPSJwbGF5LWJ1dHRvbiI+PC9kaXY+CiAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgPC9kaXY+CiAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICA8L2Rpdj4KICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgCiAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgPC9kaXY+CiAgICAgICAgICAgICAgICAgICAgICAgICAgICA=
By clicking on Load external content, I consent to the processing of my data by Youtube. This consent can be revoked at any time with effect for the future. Further information can be found in our privacy policy.
accessories
FHB3500-Z-LS03
Load suspension kit
for VW ID series
for VW ID series
FHB3500-Z-LS04
Load suspension kit
e.g. for Mercedes-Benz G-Class
e.g. for Mercedes-Benz G-Class
FHB3500-Z-LS06
Load suspension kit
for transporters
for transporters
FHB3500-Z-WF625
Wheel forks
Suitable for lifting vehicles by the wheels
Suitable for lifting vehicles by the wheels
FHB3500-Z-P01
PIN supports
FHB3500-Z-V01
U/V supports
FHB3500-Z-LA100
2 extension tubes,
100 mm
100 mm

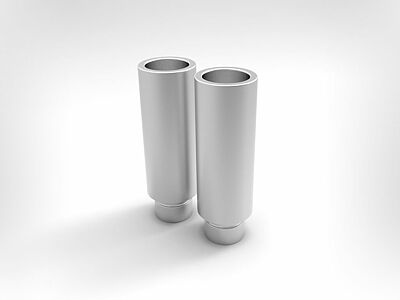

FHB3500-Z-LA200
2 extension tubes,
200 mm
200 mm
FHB3500-Z-LA300
2 extension tubes,
300 mm
300 mm
FHB3500-Z-UG
U-guidances
for rubber pads
for rubber pads
FHB3500-Z-RP01-4
rubber pads,
height 100 mm
height 100 mm
FHB3500-Z-SPOT01
LED spot light,
12 W, 24V
12 W, 24V
FHB3500-Z-FLP
fork lift pockets
FHB3500-Z-TR03
2 cross beams, 3,5 t,
length 2826 mm / 2566 mm
length 2826 mm / 2566 mm
FHB3500-Z-FA3
2 platforms,
2.75 t, length 3.5 m,
to drive-on with cars
2.75 t, length 3.5 m,
to drive-on with cars

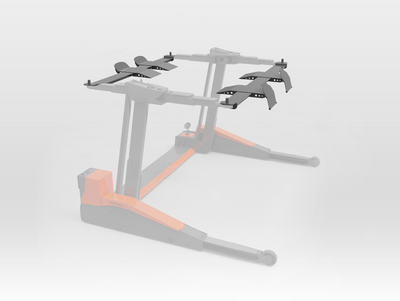

FHB3500-Z-FATORO
4 wheel support plates, 2.75 t,
individually adjustable, for
mowing machines and tractors
individually adjustable, for
mowing machines and tractors
FHB3500-Z-PR232
2 rectangular tubes to lift
at the front legs, 1.5 t,
for pallet trucks and stackers
at the front legs, 1.5 t,
for pallet trucks and stackers
your system benefits
Free workshop area
Your workshop area stays free for most versatile use. A fixed installation is not required. Plug and play!
Mobile car lift FHB, easy to move by one person
The free-standing lift FHB requires no fixing on the floor
Versatile use in the workshop
The portable lift FHB can be used for various types of vehicles. Cars, SUV and vans are lifted by means of standard swivel arms or optional detachable platforms. Special vehicles such as mowers, golf-carts or small tractors by means of 4 adjustable drive-on platforms.
Lifting also of compact cars such as SMART Fortwo, with free door access
Van MAN TGE raised to half lift stroke
Movable lift FHB3500, can also be used for trailers up to 3.5 tons
Portable FHB3000 car lift with drive-on ramps FA3 as an accessory, ideal for classic cars such as Citroen Traction Avant
Free access to the vehicle

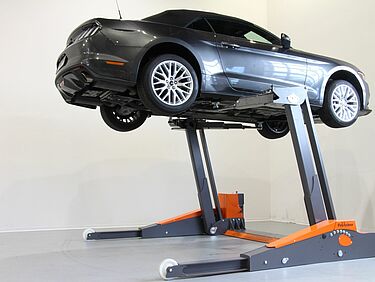

FHB car lift models ensure optimum free access to the underside of the vehicle and free door access at any lifting height.

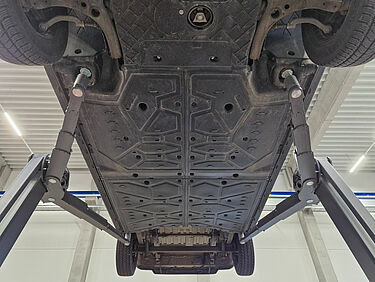

Free access to the underside of the vehicle
Car doors can be opened freely
Safe support of the vehicle
The car is driven into the U-shape of the lift until the front wheels touch the crossbeam. Then the 4 telescopic swivel arms are positioned underneath the vehicle from the outside to adjust the lifting pads to the car's pick-up points.
Finkbeiner FHB3000, mobile car lift, car drives into the lift frame up to the crossbeam

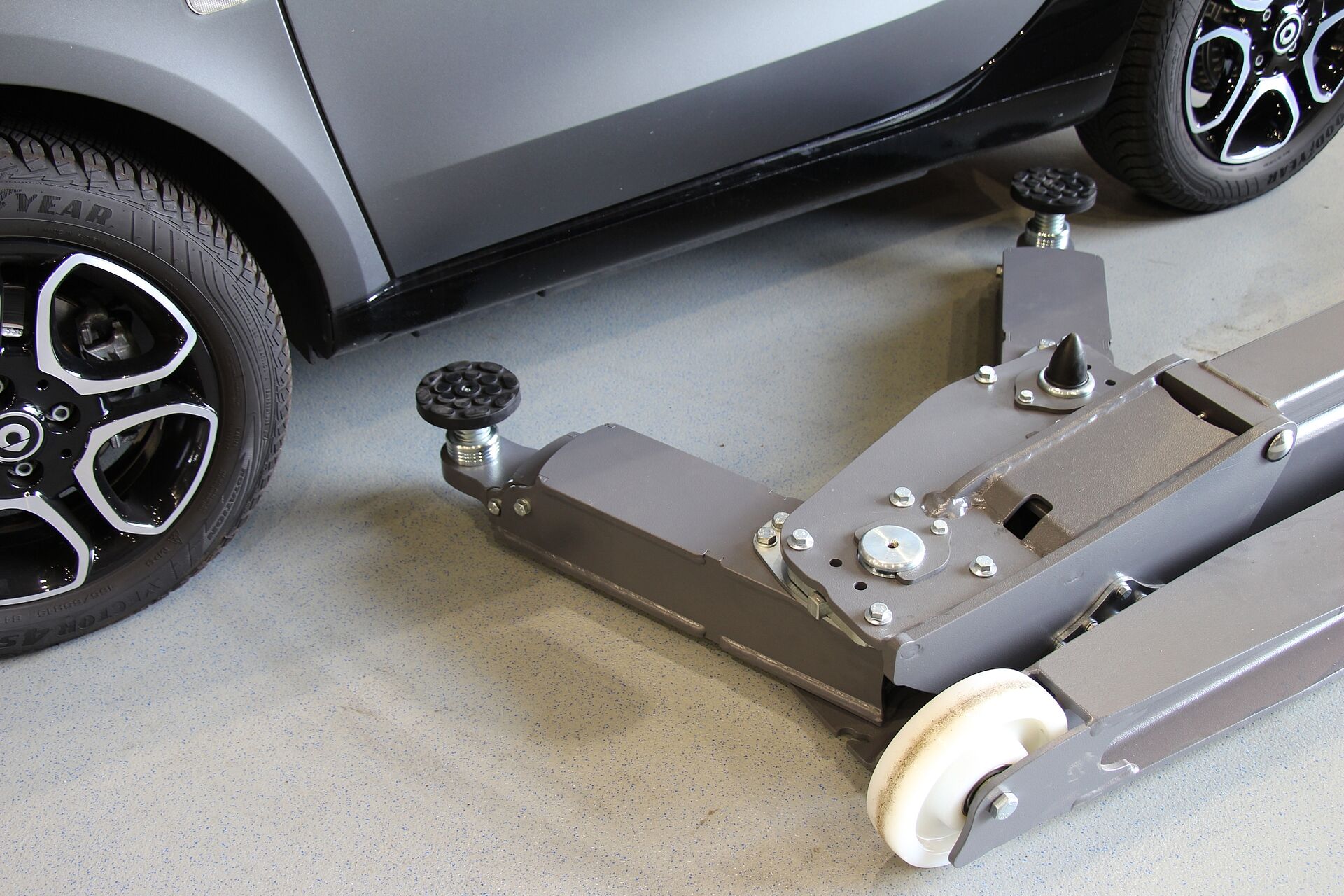

The swivel arms are positioned at the vehicle's pick-up points from the outside
technical specifications
specifications
| article no. | FHB3500-DC01 | |
| load support | load support | 4 swivel arms, symmetric |
| capacity | 3.5 t | |
| length of swivel arm at front, minimum (mm) | 560 mm | |
| length of swivel arm at front, maximum (mm) | 1300 mm | |
| length of swivel arm at rear, minimum (mm) | 560 mm | |
| length of swivel arm at rear, maximum (mm) | 1300 mm | |
| distance between supports, maximum | 2950 mm | |
| load pad Ø | 120 mm | |
| height | lifting stroke effective | 1800 mm |
| lifting height | 1940 mm | |
| minimum support height (mm) | 120 mm | |
| height adjustment of load pad | 40 mm | |
| speed | lifting time | 40 sec. |
| lowering time (under load) | 40 sec. | |
| drive | mode of drive | electro-hydraulic |
| motor | DC voltage | |
| motor power (kW) | 2.2 kW | |
| Oil | HLP ISO-VG 32 | |
| Required Quantity | approx. 10 liters | |
| power supply | type of power supply | battery-powered |
| type of battery | deep cycle, maintenance-free | |
| lift cycles at full load | 20 | |
| battery capacity | 80 Ah | |
| total battery voltage | 24 V | |
| length of charging cable | 1 m | |

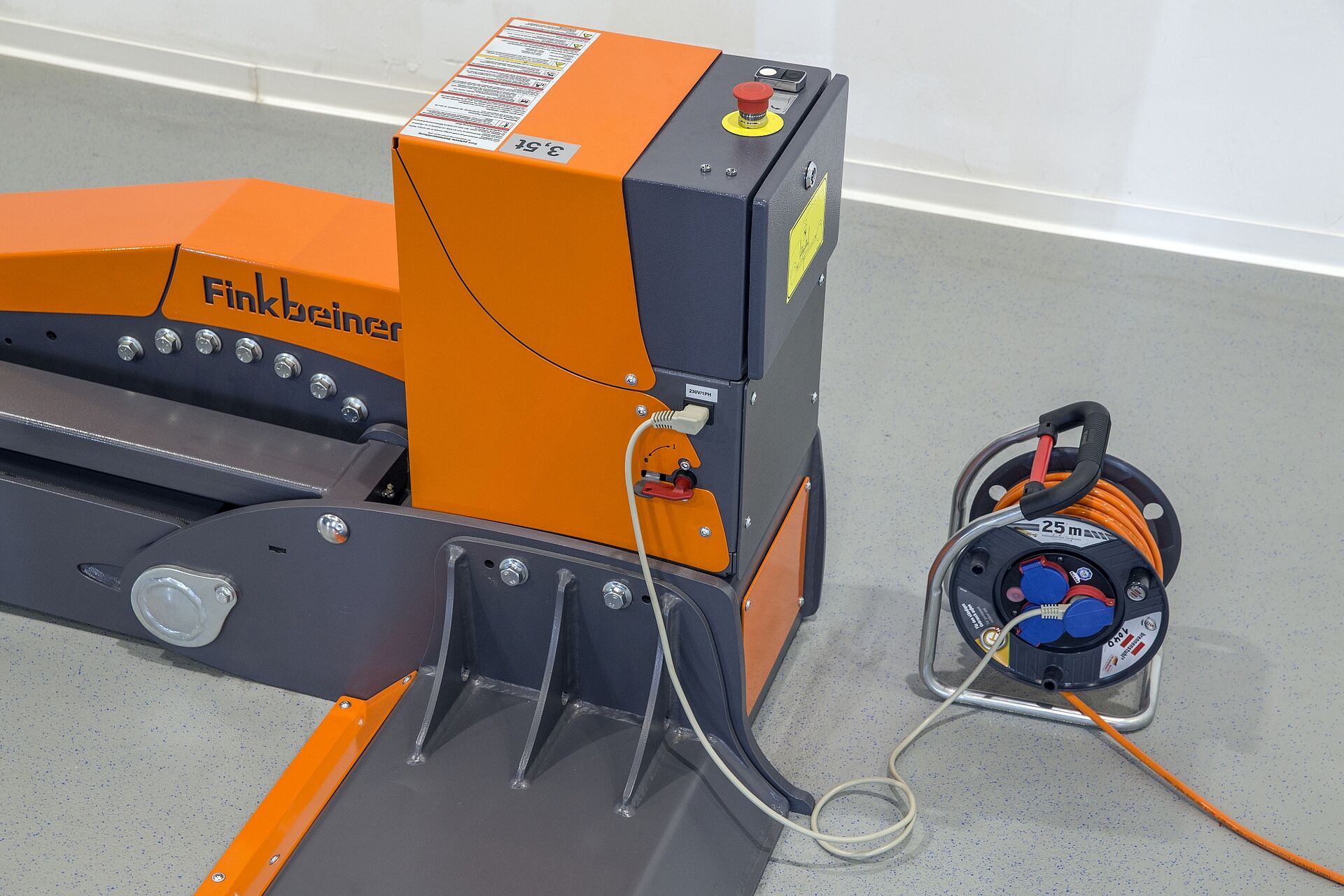

| charging concept | integrated charger | |
| charging voltage | 230 V | |
| frequency of power supply | 50 Hz | |
| charging time | 8 h | |
| operation | mode of operation | 1 central control unit |
| control | electronic | |
| regularisation | synchronisation | master-slave cylinder system |
| travelling device | travelling device | 2 front wheels, 1 detachable wheel handle at rear |
| ground clearance at front | 20 mm | |
| ground clearance at rear | 90 mm | |
| load securing | load securing | hydraulic and mechanical |
| dimensions | length | 2960 mm |
| width | 3350 mm | |
| height | 750 mm | |
| drive-in width | 2300 mm | |
| weight | 1350 kg | |
| protection class | IP54 | |
| surface treatment | type of surface treatment | powder coating |
| colour | orange RAL2004 / grey RAL7015 |
